ADT series large desulfurization circulating pump

ADT series large desulfurization lime circulating pump ( DN≥300 mm )

is axial suction, single stage, single suction and suspending frame centrifugal structure.

In hydraulic & structure design, and material, the pump integrated application of advantages of domestic and overseas then add innovation, to keep high efficiency, energy-save, anti wear &corrosion, weak vibration, less noise, stable operation, long life, easy maintenance etc.

The ADT series large desulfurization circulating pump comprehensive performance is in the leading level. It widely used in thermal power, aluminum smelting and refining industries of desulfurization system transmission of limestone and gypsum slurry. Slurry chlorine content is up to 60000 ppm, slurry PH value is allowed between 2.5-13, temperature ≤65°C, weight density up to 60% .

The ADT series large desulfurization circulating pump is single case(volute) structure.
Impeller and shaft adopt screw connection.
Shaft seal adopt mechanical seal.
Frame part adopt thin oil lubrication model.
The wet end parts are including impeller, volute, frame plate liner insert,
inlet short pipe use the metal developed by us of high chromium alloy material which could resist abrasion and corrosion.

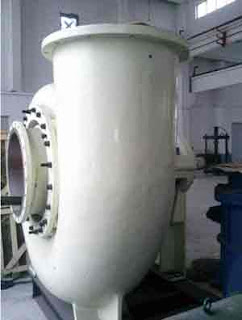

The ADT series large desulfurization circulating pump

The ADT series large desulfurization circulating pump Composition

1. Impeller 2. Inlet Short Pipe 3. Volute 4. Frame Plate Liner Insert

5. Mechanical Seal 6. Dismantling Ring 7. Frame 8. Bearing Housing

9. Shaft 10. Adjusting Screw 11. Clamp bolt 12. Bolt 13. Support 14. Stud

The ADT series large desulfurization circulating pump
